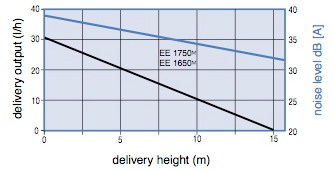

EE1650 Pump & electronic solutions :-  HVAC&R / Hydraulic Industry / Medical / Floor Care /  Lighting Drinks Dispensing / Solar / Printing & many other applications EE1650 Condensate-removal system with integrated tank & 3-level float switch sensor. For air conditioners up to 32kW (110 000 BTU) Technical data     Pump unit: (L x W x H) 224 x 174 x 144 mm     Electrical spec.: 230 V, 50/60 Hz, 40 VA     Max. flow rate: 32 l/h     Max. delivery height: 15 m     Tank capacity: 2 l     Alarm: Start - 40mm / Stop - 30mm / Alarm - 52mm +/- 2mm      Alarm switch: NO / NC. 230V, 8A (Ohmic Load)     Application This compact unit with integrated float switch is designed to be used inside devices equipped only with a condensate collecting tank such as fan convectors, cabinet models, built-in units, water collection consoles… Steps must be taken to ensure that no fluid runs over the pump! Description The delivery system is equipped with 2 separately operating float switches. The working float switch turns the pump on and off depending on the filling level (with run-on time). The function of the alarm float switch is to isolate the break contact element. Installation Example Performance Graph Download User manual PDF (693.9 kB) Brochure PDF (364.1 kB) Terms & conditions www.eckerle.co.za  info@eckerle.co.za Fax: +27 11 674 4013 Tel: +27 11 674 4011
